| Product： |
Manual Blind Valve |
| Item No.： |
F343X |
|
| Caliber： |
DN200~2000mm |
| Nominal Pressure： |
0.05-0.25MPA |
Description:
- Applicable temperature Applicable medium
- Drive mode electric, hydraulic, pneumatic, electro-hydraulic
- Body material carbon steel, rubber, chrome steel
- Design standard API 600, API6D, ASME B16.34, GB/T 12234
- Structure length ASME B16.10, API6D, GB/T 12221
- Connection standard ASME B16.5, ASME B16.47, GB/T 9113, JB/T 79, HG/T 20592
- Pressure test API 598, GB/T 13927, JB/T 9092
- Pressure-temperature rating ASME B16.34, GB/T 12224
|
|
| Product Performance of Item No. F343X |
| nominal pressure mpa |
0.25 |
0.15 |
0.10 |
0.05 |
| seal test pressure mpa |
0.275 |
0.165 |
0.11 |
0.055 |
| strength test pressure mpa |
0.40 |
0.225 |
0.15 |
0.075 |
| applicable temperature ℃ |
nitrile rubber |
silicone rubber |
fluororubber |
| <120 |
<250 |
<300 |
| suitable media |
gas and other toxic, harmful, flammable gas |
| standard |
connection flange size in line with jb / t81-94 standards, testing methods in line with gb / t13927-92 standards |
| the main components of the material |
valve body, the gate for the carbon steel; connecting shaft, expansion carbon steel or stainless steel; ring for the rubber |
|
|

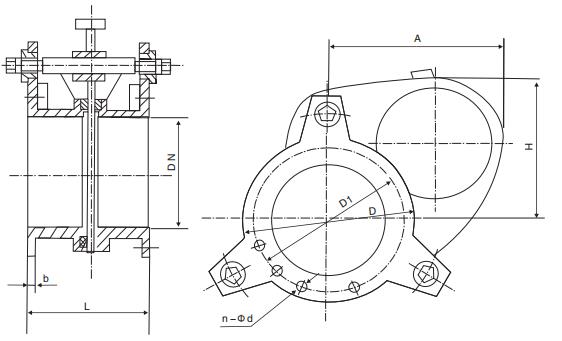

F343X Manual Blind Valve Main Connection Size: |
 |
| dn |
d |
d1 |
b |
n-φd |
l |
| 300 |
440 |
395 |
22 |
12-φ22 |
500 |
| 350 |
490 |
445 |
22 |
12-φ22 |
500 |
| 400 |
540 |
495 |
22 |
16-φ22 |
600 |
| 450 |
595 |
550 |
24 |
16-φ22 |
600 |
| 500 |
645 |
600 |
24 |
16-φ22 |
600 |
| 600 |
755 |
705 |
24 |
20-φ26 |
600 |
| 700 |
860 |
810 |
26 |
24-φ26 |
800 |
| 800 |
975 |
920 |
26 |
24-φ30 |
800 |
| 900 |
1075 |
1020 |
28 |
24-φ30 |
800 |
| 1000 |
1175 |
1120 |
30 |
28-φ30 |
800 |
| 1100 |
1275 |
1220 |
30 |
28-φ30 |
800 |
| 1200 |
1375 |
1320 |
30 |
32-φ30 |
800 |
| 1300 |
1475 |
1420 |
32 |
32-φ30 |
800 |
| 1400 |
1575 |
1520 |
32 |
36-φ30 |
850 |
| 1500 |
1675 |
1620 |
32 |
36-φ30 |
850 |
| 1600 |
1790 |
1730 |
32 |
40-φ30 |
850 |
| 1800 |
1990 |
1930 |
32 |
44-φ30 |
1100 |
| 2000 |
2190 |
2130 |
32 |
46-φ30 |
1100 |
|
|
|
