| Product： |
Flat Gate Valve
|
| Item No.： |
Z43F/Z543F/Z643F/Z943F |
|
| Calibre： |
DN50～DN800 |
| Nominal Pressure： |
1.6～10.0MPa |
| Description: Parallel single and double gate self-tightening structure, the seat for the piston effect seal performance is reliable. The sealing surface is metal to metal, metal to metal and sealing grease. or metal pairs of Teflon plus metal and sealing lipids. Zero leakage requirements can be met. The sealing surface can be automatically greased, the sealing performance is reliable and the service life is long. The flow resistance coefficient is not, the opening and closing force is small, the operation is convenient and flexible. Advanced structure, easy maintenance. With a conductive hole gate valve to meet the requirements of the ball sweep line. Drives are manual, umbrella gear (or positive gear) drives, electric, pneumatic and hydraulic. |
|
|
Technical Parameters of Z43F/Z543F/Z643F/Z943F |
| 设计等级 |
常温下试验压力(MPa) |
适用温度℃ |
平板闸阀适用的介质 |
| 壳体 |
左密封 |
左密封 |
低压密封 |
“G”型 |
“D”型 |
普通型 |
“抗硫”型 |
“基本”型 |
公称压力
PN(MPa) |
1.6 |
2.4 |
1.76 |
1.76 |
0.6 |
-29~50 |
-45~21 |
-2~121 |
H2S和CO2总含量
大于500mg/m2的介质 |
石油天然气、水等 |
| 2.5 |
3.75 |
2.75 |
2.75 |
0.6 |
| 4.0 |
6.0 |
4.4 |
4.4 |
0.6 |
| 6.4 |
9.6 |
7.04 |
7.04 |
0.6 |
| 磅级Lb |
15. |
3.0 |
2.2 |
2.2 |
0.6 |
| 300 |
7.7 |
5.6 |
2.6 |
0.6 |
|
|
Main Parts Material: |
| 阀门/阀盖 |
WCB |
WC6 |
A352-LCBA |
351-CF8M |
| 闸板 |
2Cr13+ENP |
20CrMoV+STL |
ANSO410+ENP |
ANSI316+ENP |
| 阀杆 |
2Cr13 |
2Cr13 |
A182-A6a |
A182-A316S |
| 阀座 |
25+PTFE |
20CrMoV+STL |
A105+PTFE |
A182-F316+PTFE |
| 填料 |
NBR/FPM |
柔性石墨 |
聚四氟乙烯 |
| 垫片 |
—— |
| 螺栓 |
35 |
35CrMo |
A193-B7M |
A193-B8 |
| 适用介质 |
水、油口、蒸汽 |
蒸汽、油品 |
丙烷、乙烯 |
硝酸类 |
|

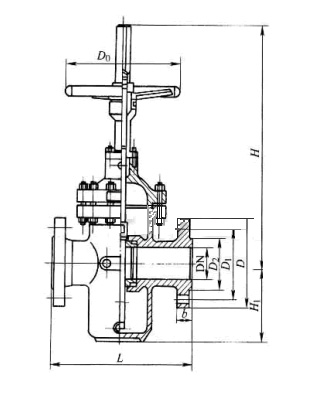

| Product Performance of Item No. Z43F/Z543F/Z643F/Z943F |
 |
| 1.6MPa |
DN |
L |
D |
D1 |
D2 |
D0 |
f |
b |
H |
H1 |
n-Φd |
|
凸面法兰(RF)
(K)Z43WF6C
(K)Z543WF6C
(K)Z643WF6C
(K)Z943WF6C
|
50 |
178 |
160 |
125 |
100 |
250 |
3 |
18 |
584 |
80 |
4-Φ18 |
| 65 |
190 |
180 |
145 |
120 |
250 |
3 |
18 |
634 |
95 |
4-Φ18 |
| 80 |
203 |
195 |
160 |
135 |
250 |
3 |
20 |
688 |
100 |
8-Φ18 |
| 100 |
229 |
215 |
181 |
155 |
300 |
3 |
20 |
863 |
114 |
8-Φ18 |
| 125 |
254 |
245 |
210 |
185 |
350 |
3 |
20 |
940 |
132 |
8-Φ18 |
| 150 |
267 |
280 |
240 |
210 |
350 |
3 |
24 |
1030 |
150 |
8-Φ23 |
| 200 |
292 |
335 |
295 |
265 |
350 |
3 |
26 |
1277 |
168 |
12-Φ23 |
| 250 |
330 |
405 |
355 |
320 |
400 |
3 |
30 |
1491 |
203 |
12-Φ25 |
| 300 |
356 |
460 |
410 |
375 |
450 |
4 |
30 |
1701 |
237 |
12-Φ25 |
| 350 |
381 |
520 |
470 |
435 |
500 |
4 |
34 |
1875 |
265 |
16-Φ30 |
| 400 |
406 |
580 |
525 |
485 |
305 |
4 |
36 |
2180 |
300 |
16-Φ30 |
| 450 |
432 |
640 |
585 |
545 |
305 |
4 |
40 |
2440 |
325 |
20-Φ34 |
| 500 |
457 |
705 |
650 |
608 |
305 |
4 |
44 |
2860 |
360 |
20-Φ41 |
| 600 |
508 |
840 |
770 |
718 |
305 |
5 |
48 |
3450 |
425 |
20-Φ41 |
| 700 |
610 |
910 |
840 |
788 |
305 |
5 |
50 |
3960 |
460 |
24-Φ41 |
| 800 |
660 |
1020 |
950 |
898 |
305 |
5 |
52 |
4550 |
512 |
24-Φ41 |
| 900 |
711 |
1120 |
1050 |
998 |
250 |
5 |
54 |
5250 |
565 |
28-Φ48 |
| 1000 |
811 |
1250 |
1170 |
1110 |
250 |
5 |
56 |
5870 |
630 |
28-Φ18 |
| 2.5MPa |
50 |
178 |
160 |
125 |
100 |
250 |
3 |
20 |
584 |
80 |
4-Φ18 |
|
凸面法兰(RF)
(K)Z43WF-25
(K)Z543WF-25
(K)Z643WF-25
(K)Z943WF-25
|
65 |
190 |
180 |
145 |
120 |
300 |
3 |
22 |
634 |
95 |
8-Φ18 |
| 80 |
203 |
195 |
160 |
135 |
350 |
3 |
22 |
388 |
100 |
8-Φ18 |
| 100 |
229 |
230 |
190 |
160 |
350 |
3 |
24 |
863 |
114 |
8-Φ23 |
| 125 |
254 |
270 |
220 |
188 |
350 |
3 |
28 |
940 |
132 |
8-Φ25 |
| 150 |
267 |
300 |
250 |
218 |
400 |
3 |
30 |
1030 |
150 |
8-Φ25 |
| 200 |
292 |
360 |
310 |
278 |
450 |
3 |
34 |
1277 |
168 |
12-Φ25 |
| 250 |
330 |
425 |
370 |
332 |
500 |
3 |
36 |
1491 |
203 |
12-Φ30 |
| 300 |
356 |
485 |
430 |
390 |
305 |
4 |
40 |
1701 |
237 |
16-Φ30 |
| 350 |
381 |
550 |
490 |
448 |
305 |
4 |
44 |
1875 |
265 |
16-Φ34 |
| 400 |
406 |
610 |
550 |
505 |
305 |
4 |
48 |
2180 |
300 |
16-Φ34 |
| 450 |
432 |
660 |
600 |
555 |
305 |
4 |
50 |
2440 |
325 |
20-Φ34 |
| 500 |
457 |
730 |
660 |
610 |
305 |
4 |
52 |
2860 |
360 |
20-Φ41 |
| 600 |
508 |
840 |
770 |
718 |
305 |
5 |
56 |
3450 |
425 |
20-Φ41 |
| 700 |
610 |
955 |
875 |
815 |
305 |
5 |
60 |
3960 |
460 |
24-Φ48 |
| 800 |
660 |
1070 |
990 |
930 |
305 |
5 |
64 |
4550 |
512 |
24-Φ48 |
| 900 |
711 |
1182 |
1090 |
1025 |
- |
5 |
66 |
5250 |
595 |
28-Φ54 |
| 1000 |
811 |
1305 |
1210 |
1140 |
- |
5 |
68 |
5870 |
660 |
28-Φ48 |
|
