Product overview
Product model: D371X
Nominal diameter: DN40~350mm
Nominal pressure: PN0.6~1.6MPa
Applicable temperature: ≤120℃
Applicable medium: air, water, sewage, steam, gas, oil, etc
Main material: ductile iron, cast steel, alloy steel, stainless steel
Drive mode: manual, worm gear drive, gas drive, electric drive
Design standard: GB/T12238-1989, LS0 10641-1994 or BS EN593-1998
Flange connection size GB/ T17241.6-1998, IS0 7005-2 or BSEN 1092-2002
Structure Length: GB/T1 2221-1989, LS0 5752-1988 or BS EN558-1
Pressure test: GB/T13927-1 992, JB/T9092-1999, LS0 5028-1993 or BS 6755-L-1986
Product Details of Wafer Soft Seal Butterfly Valve D371X:
Technique Characteristics of Wafer Soft Seal Butterfly Valve D371X:
Wafer Soft Seal Butterfly Valve D371X produced and sold by TopVal for temperature ≤120 ℃, nominal pressure ≤16MPa food, pharmaceutical, chemical, oil, electricity, alloy, construction, textile, paper and other drainage, gas pipe for Regulate flow and shut off media.
Main Features of Wafer Soft Seal Butterfly Valve D371X:
1, the design is novel, reasonable, unique structure, light weight, quick opening and closing.
2, torque is small, easy to operate, labor-saving smart.
3, can be installed in any location, easy maintenance.
4, seals can be replaced, sealing performance and reliable two-way seal to achieve zero leakage.
5, sealing material aging resistance, corrosion resistance, long life and other characteristics.

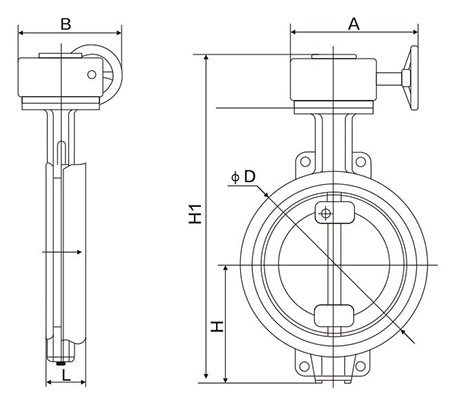

Main Dimensions and weight of Wafer Soft Seal Butterfly Valve D371X (PN1.0 / 1.6MPa):
| DN (mm) | A | B | C | D1 | L | n-Φ | K | E | 4-Φ1 | Φ2 | G | Weight WT (kg) |
| 50 | 140 | 80 | 43 | 125 | 32 | 4-19 | 77 | 57.15 | 4-6.7 | 12.6 | 100 | 3.34 |
| 65 | 152 | 89 | 46 | 145 | 32 | 4-19 | 77 | 57.15 | 4-.67 | 12.6 | 120 | 3.94 |
| 80 | 159 | 95 | 45.21 | 160 | 32 | 8-19 | 77 | 57.15 | 4-.67 | 12.6 | 127 | 4.05 |
| 100 | 178 | 114 | 52.07 | 180 | 32 | 8-19 | 92 | 69.85 | 4-10.3 | 15.77 | 156 | 5.48 |
| 125 | 190 | 127 | 55.5 | 210 | 32 | 8-19 | 92 | 69.85 | 4-10.3 | 18.92 | 190 | 7.66 |
| 150 | 203 | 139 | 55.75 | 240 | 32 | 8-23 | 92 | 69.85 | 4-10.3 | 18.92 | 212 | 8.5 |
| 200 | 238 | 175 | 60.58 | 295 | 45 | 8-23 | 115 | 88.9 | 4-14.3 | 22.1 | 268 | 25 |
| 250 | 268 | 203 | 68 | 350 | 45 | 12-23 | 115 | 88.9 | 4-14.3 | 28.45 | 325 | 31.4 |
| 300 | 306 | 242 | 76.9 | 400 | 45 | 12-23 | 140 | 107.95 | 4-14.3 | 31.6 | 403 | 45.9 |
| 350 | 368 | 267 | 76.17 | 460 | 45 | 16-23 | 140 | 107.95 | 4-14.3 | 31.6 | 436 | 54 |
