Product Description of Aluminum Pinless Handle Butterfly Valve D71X:
Aluminum Pinless Handle Butterfly Valve D71X produced by TopVal is made of rubber sealing butterfly valve and carbon steel or stainless steel valve plate and valve stem. For temperature ≤ 80 ~ 120 ℃ Such as food, medicine, chemicals, petroleum, electricity, textile, paper and other water supply and drainage, gas pipeline for regulating the role of flow and interception of the media.
Main Features of Aluminum Pinless Handle Butterfly Valve D71X:
1, novel design, reasonable, unique structure, light weight, quick opening and closing.
2, torque is small, easy to operate, labor-saving smart.
3, can be installed in any location, easy maintenance.
4, seals can be replaced, sealing performance and reliable two-way seal to achieve zero leakage.
5, anti-aging sealing material, resistance to weak corrosion, long life and other characteristics.

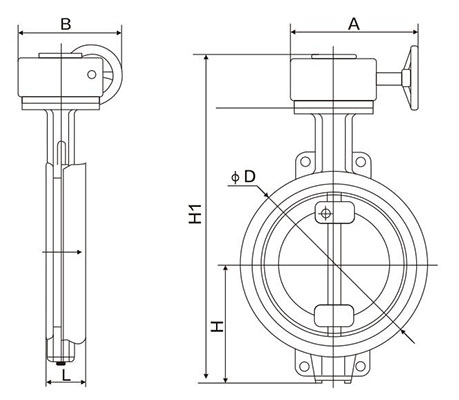

Main Dimensions of Aluminum Pinless Handle Butterfly Valve D71X:
DN(mm) | A | B | C | D1 | L | n-Φ | K | E | 4-Φ1 | Φ2 | G | WT(kg) |
50 | 140 | 80 | 43 | 125 | 32 | 4-19 | 77 | 57.15 | 4-6.7 | 12.6 | 100 | 3.34 |
65 | 152 | 89 | 46 | 145 | 32 | 4-19 | 77 | 57.15 | 4-.67 | 12.6 | 120 | 3.94 |
80 | 159 | 95 | 46 | 160 | 32 | 8-19 | 77 | 57.15 | 4-.67 | 12.6 | 127 | 4.05 |
100 | 178 | 114 | 52 | 180 | 32 | 8-19 | 92 | 69.85 | 4-10.3 | 15.77 | 156 | 5.48 |
125 | 190 | 127 | 56 | 210 | 32 | 8-19 | 92 | 69.85 | 4-10.3 | 18.92 | 190 | 7.66 |
150 | 203 | 139 | 56 | 240 | 32 | 8-23 | 92 | 69.85 | 4-10.3 | 18.92 | 212 | 8.5 |
200 | 238 | 175 | 60 | 295 | 45 | 8-23 | 115 | 88.9 | 4-14.3 | 22.1 | 268 | 25 |
250 | 268 | 203 | 68 | 350 | 45 | 12-23 | 115 | 88.9 | 4-14.3 | 28.45 | 325 | 31.4 |
