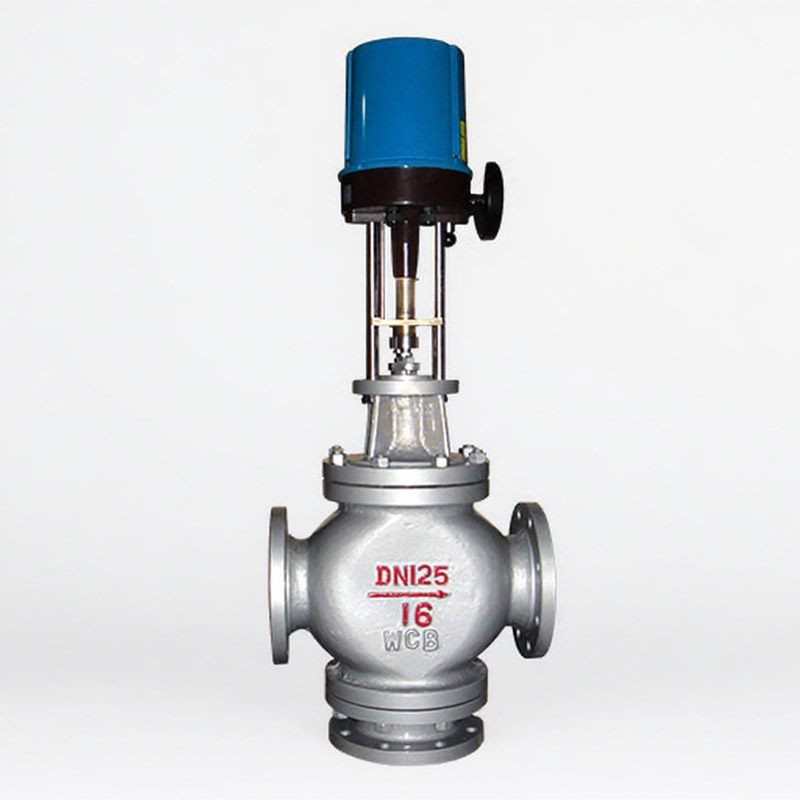

Electronic Electric Three-way Regulating Valve ZDLQProduct overviewProduct model: ZDLQNominal diameter: DN25~300mmNominal pressure: PN0.6~6.4MPaWorking temperature: -40 ~ 230℃(normal temperature type), heat sink type 230 ~ 450℃(medium temperature type), special order -100 ~ 600℃Main material: WCB(ZG230-450), ZG1Cr...
Pneumatic Piston Three-way Shut Off Valve ZSQNProduct overviewProduct model: ZSQNNominal diameter: DN20~200mmNominal pressure: PN1.0 ~ 6.4MPaConnection mode: flangeBody material: cast iron, carbon steel, stainless steelApplicable medium: water, steam, oil, acid and alkali, etcApplication temperature: soft seal F (...
Pneumatic Diaphragm With Hand Wheel Single-seat Regulating Valve ZJHPProduct overviewProduct model: ZJHPNominal diameter: DN20mm~200mmNominal pressure: 1.0, 1.6, 4.0, 6.4MPaApplicable temperature: -200℃ ~ +560℃Main material: HT200, ZG230-450 ZG1Cr18Ni9TiFlange standard: cast iron flange according to GB4216.5-84 ca...

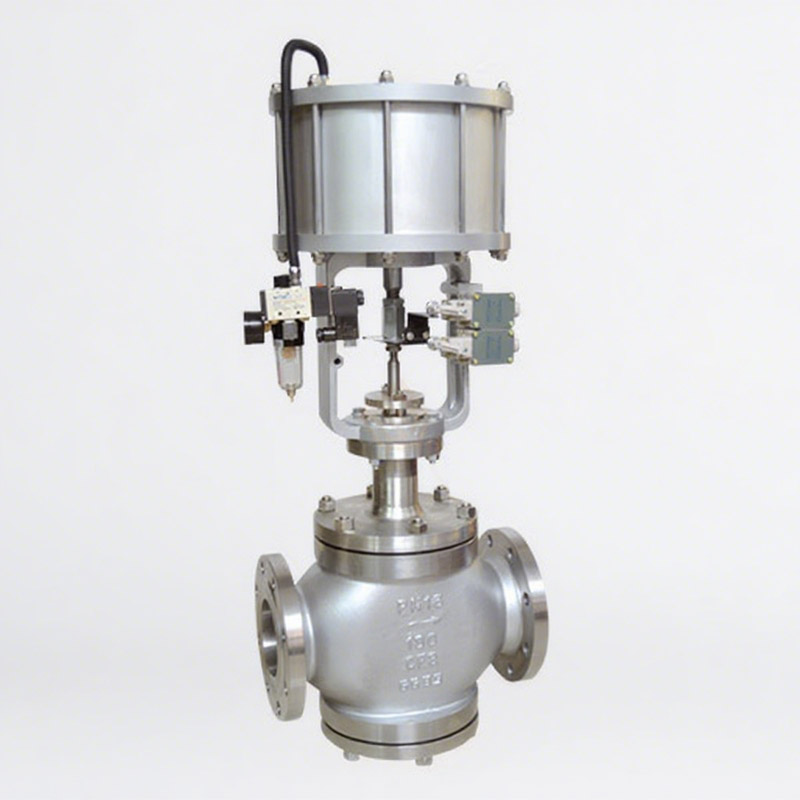

Double Guide Shut Off Valve ZSQProduct overviewProduct model: ZSQNominal diameter: DN20 ~ 200mmNominal pressure: PN10, 16, 40, 64MPaApplicable temperature: -60 ~ 450℃Main material: HT200, zg1cr18ni9tizgocr18ni12m02ti ZG230-450Drive mode: pneumaticDesign standard: GB/T17213Flange standard: GB/T9113, JB/T79, HG20594 and...

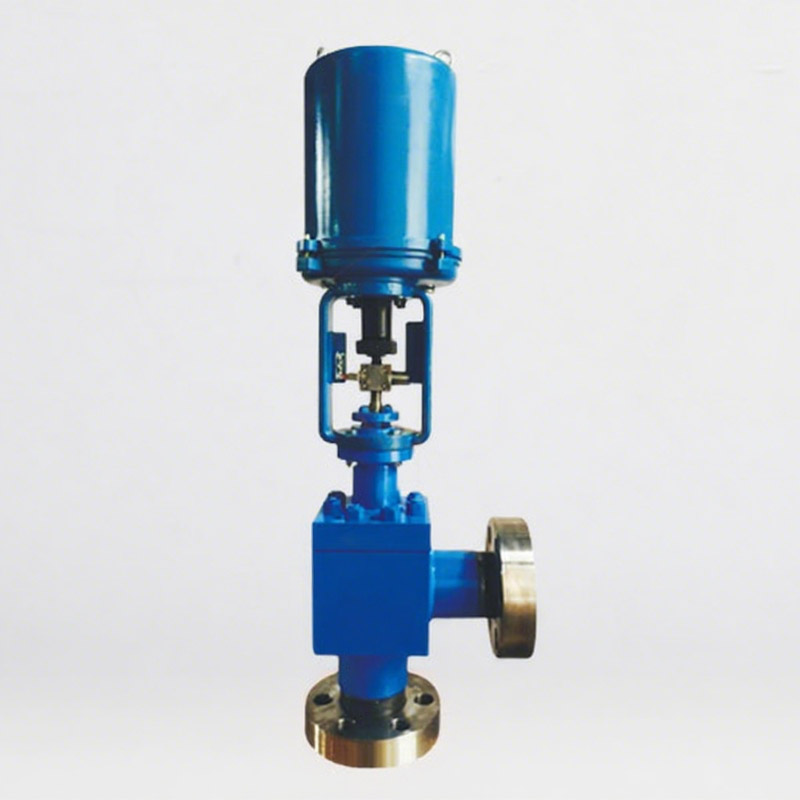

Electric Angle Regulating Valve ZDLSProduct overviewProduct model: ZDLSNominal diameter: DN20~300mmNominal pressure: PN1.6~6.4MPaOperating temperature: ordinary -40 ~ 230℃;Heat sink type 230 ~ 450℃, special order 450 ~ 600℃Main material: ZG230-450, ZG1Cr18Ni9Ti, 316, 316L, wear resistant alloy, etcDrive mode: elec...

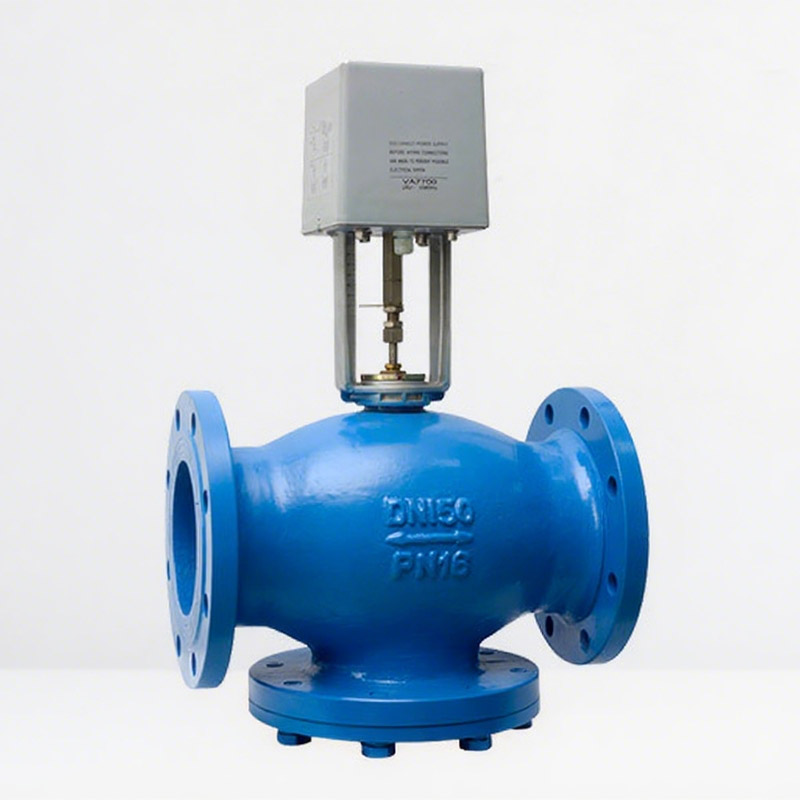

Electric Two Way Valve VB-7000Product overviewProduct model: VB-7000Nominal diameter: DN65~200mmMedium temperature: 2℃ ~ 95℃Applicable medium: steam, cold water, hot waterApplication: industrial and industrial fluid control applications in air conditioning, thermal ventilation, thermal treatment plantsDesign stand...

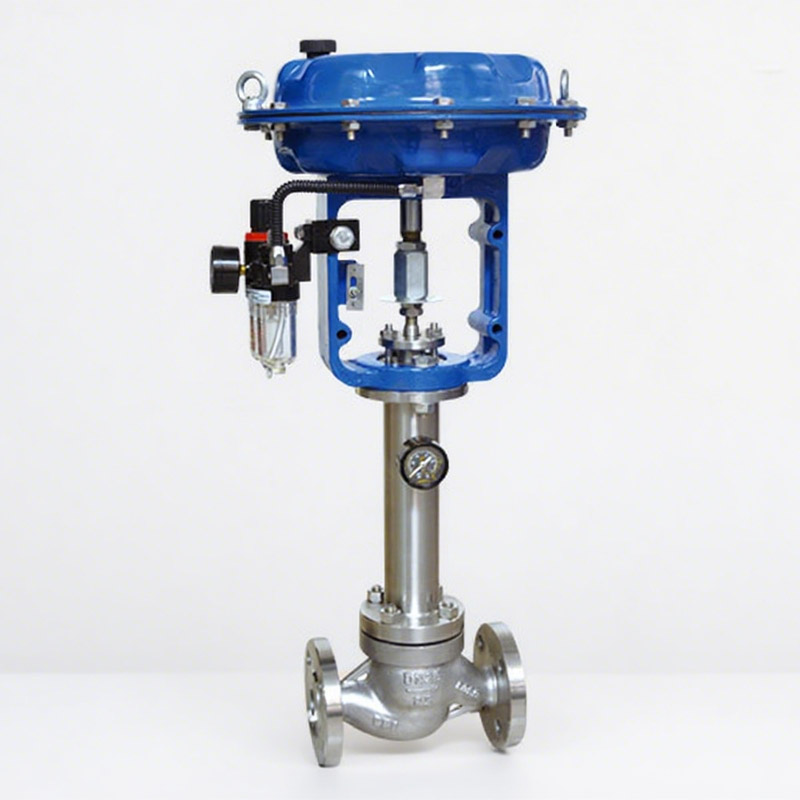

Pneumatic Bellows Regulating Valve ZJHPWProduct overviewProduct model: ZJHPWNominal diameter: DN10 ~ 50mmNominal pressure: PN22, 32MPaAmbient temperature: -30 ~ +70℃Main material: forged steel, cast stainless steel (1Cr18Ni9Ti, 1Cr18Ni12Mo2Ti), 316L, etcApplicable medium: corrosive liquid, ultra-clean liquid, edib...

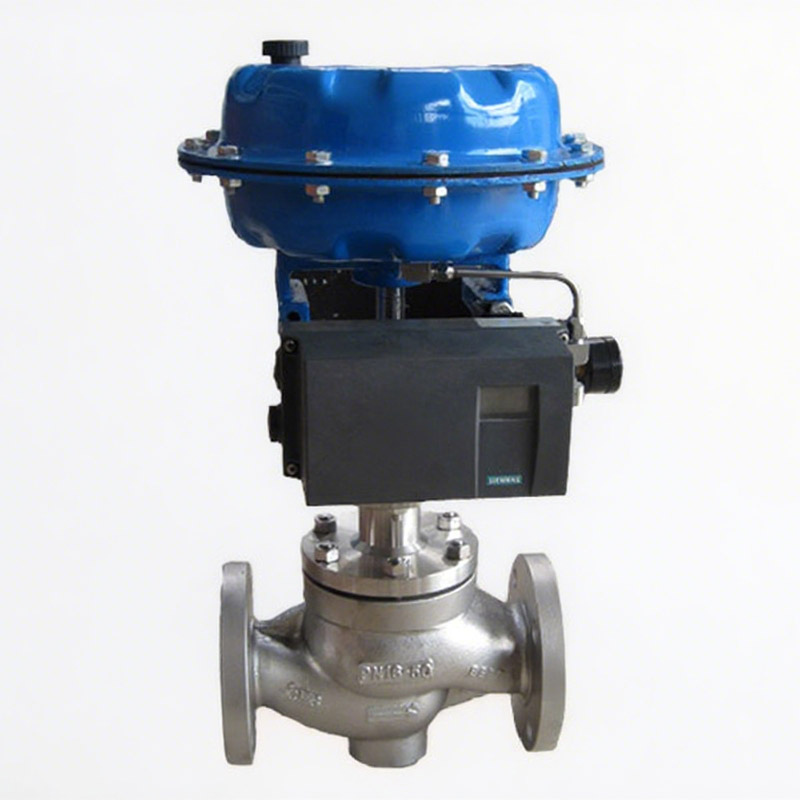

Pneumatic Diaphragm Cage Control Valve CV3000 Product overviewProduct model: CV3000Nominal diameter: DN20~200mmNominal pressure: PN1.6~6.4MPaAmbient temperature: -30 ~ +70℃Main material: cast steel (ZG230-450), cast stainless steel (ZG1Cr18Ni9Ti, ZG1Cr18Ni12Mo2Ti, ZG00Cr18Ni12Mo2Ti), titanium, etcDrive mode:...

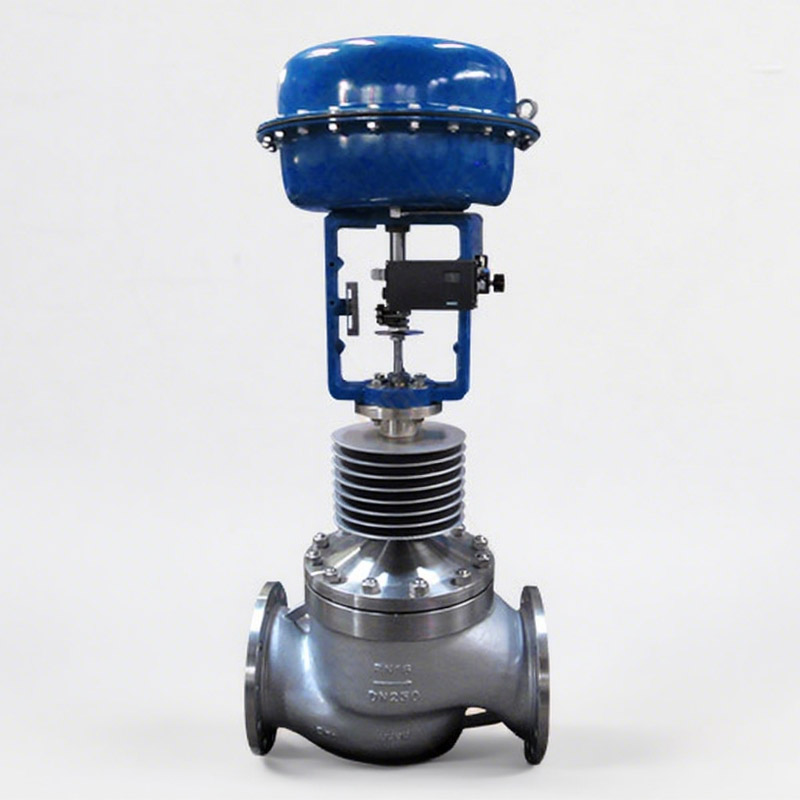

Pneumatic Film High Temp Regulating Valve ZJSGW-P(M) Product overviewProduct model: ZJSGW-P(M)Nominal diameter: DN20 ~ 300mmNominal pressure: Pn 1.6, 2.5, 4.0, 6.4, 10.0MPaAmbient temperature: -30 ~ +70℃Applicable medium: gas, liquid, steam and other mediaDrive mode: pneumaticDesign standard: GB/T17213Flange...

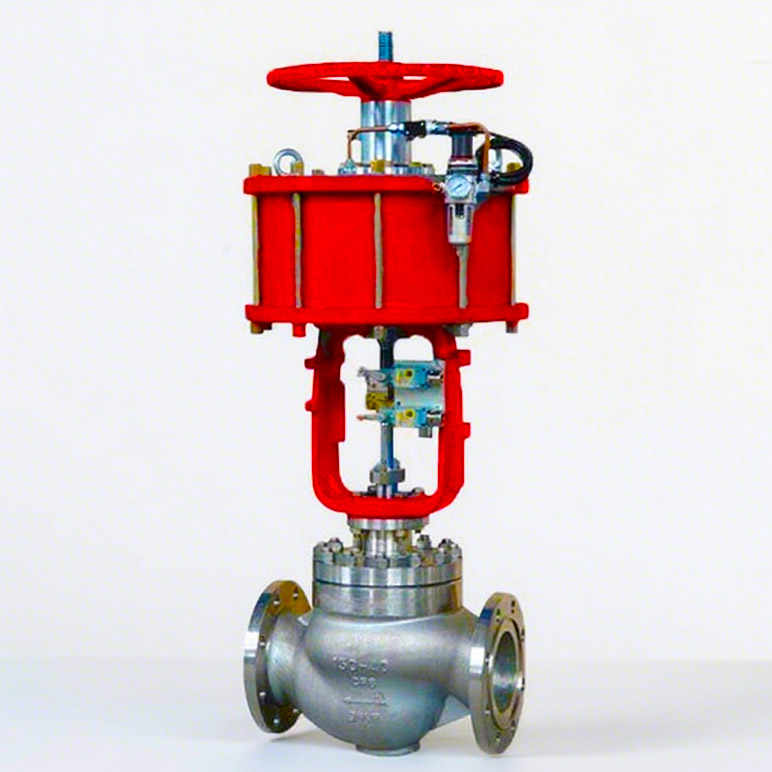

Pneumatic Piston Shutoff Valve ZSPC Product OverviewProduct model: ZSPCNominal diameter: DN20-200mmNominal pressure: PN1.6~6.4MPaMedium temperature: soft seal: -40~150℃ (normal temperature type);Hard seal: -40~200℃ (normal temperature type), -40~450℃ (medium temperature type)Main material: ZG230-450;ZG1Cr18NI...
GW Series pneumatic actuatorApplicable gas source: 0.3 ~ 0.7MPaRotation angle: 0 ° ~ 90 °Working hydraulic pressure: 20MPaAir source interface: meet nrmar standardOutput torque: double acting 616 ~ 396139n. M, single acting (spring output torque) 604 ~ 163638n. MAction form: single action and double actionAmbient tempe...
Motor power supply: 110 / 220V AC 1PH, 380 / 440V AC 3Ph, 50 / 60Hz, ± 10%Control power supply: 110 / 220V AC 1PH, 50 / 60 Hz, ± 10%Motor type: squirrel cage asynchronous motorLimit switch: 2 x on / off, SPDT, 250V AC 10AAmbient temperature: - 20 ℃ ~ + 70 ℃Input signal: 4 ~ 20mA, or 0 ~ 10dvcOutput signal: 4 ~ 20mA, or...
Product model: QYDriving power supply: AC-DC24V, AC220V, AC380VControl signal: 0-10VDC or 4-20mAStandard time / torque: 30s / 100N. M, 30s / 160n. MRotation angle: 0-90 ° adjustableAmbient temperature: - 20 ℃ ~ + 60 ℃Protection grade: IP67 (optional IP68)Installation method: 360 ° arbitrary angle installationOptional f...
Output torque: 1000-1000000nm (5.0bar double acting)Interface size: 1 / 2 "- 1", meeting the characteristics of fast opening and fast closingRotation angle: 90 ° ~ ± 5 °Ambient temperature: - 20 ℃ ~ 90 ℃Air source pressure: 0.2 ~ 0.8MPa (maximum 1.0MPa)PRODUCT OVERVIEWAW series pneumatic actuators are divided...
AT series pneumatic actuatorTorque range: 10N. M-10000N. MTravel range: 0 ° to 90 °. Adjustable + 5 ° to - 5 °Applicable temperature: - 20 ° C to + 80 ° C (NBR)Working medium: air (pneurop / ISO level 4)Protection grade: IP67Connection size: ISO 5211 DIN 3337 coupling (star)Control mode: double acting, single acting no...
