Ball Valve

Pneumatic Three-way Ball Valve Q644F

Pneumatic Three-way Ball Valve Q644F

Pneumatic Three-way Ball Valve Q644FProduct overviewModel: Q644FNominal diameter: DN15 ~ 200mmNominal pressure: PN1.6 ~ 4.0MPaOperating temperature: PTFE≤150 ℃ PTL≤300 ℃Medium: C: water, oil and gas; P: nitric acid; R: acetic acid classMain material: WCB, CF8Design specifications: GB / T 12237 API 6D API 608 BS 5351Str...

Electric Fluorine Lined Ball Valve Q941F46-16C

Electric Fluorine Lined Ball Valve Q941F46-16C

 Electric Fluorine Lined Ball ValveQ941F46-16CProduct overviewProduct model: Q941F46-16CNominal diameter: DN15 ~ 400mmNominal pressure: PN1.0 ~ 2.5MPaConnection type: flange connectionDriving device: electric actuatorApplicable medium: sulfuric acid, hydrofluoric acid, phosphoric acid, chlorine gas, strong alkali,...

Pneumatic Fixed Ball Valve Q647F

Pneumatic Fixed Ball Valve Q647F

Pneumatic Fixed Ball Valve Q647FProduct overviewProduct model: Q647FNominal diameter: DN50~500mmNominal pressure: PN1.6~6.4MPaApplicable temperature: -28℃ ~ 300℃Applicable medium: water, steam, oil, nitric acid, acetic acidDrive mode: manual, pneumaticStructure length: GB1221-89Flange size: GB9113, JB79-59Inspection te...

Equipped With Eccentric Half Ball Valve DYQ40

Equipped With Eccentric Half Ball Valve DYQ40

Equipped With Eccentric Half Ball Valve DYQ40Product overviewProduct model: DYQ40Nominal diameter: DN100~1400mmNominal pressure: PN1.0~1.6MPaMain material: carbon steel WCB/ stainless steel CF8Applicable medium: natural gas, coal gas, liquefied petroleum gas, crude oil, heavy oilApplicable temperature: ≤425℃Flange...

Fixed Worm Wheel Welded Ball Valve Q367F

Fixed Worm Wheel Welded Ball Valve Q367F

【For a better view of the product parameters, please browse our site by PC.】Fixed Worm Wheel Welded Ball Valve Q367FProduct overviewProduct model: Q367FNominal diameter: DN50~1200mm, NPS2"~48"Nominal pressure: PN1.6~ 4.2MPa, Class150~2500LBApplicable temperature: -29℃ ~ 150℃Drive mode: electric, manual,...

Stainless Steel Worm Gear Fixed Ball Valve Q347F

Stainless Steel Worm Gear Fixed Ball Valve Q347F

Product model: Q347FNominal diameter: DN32~700mmNominal pressure: PN1.6~4.0MPaOperating temperature: -28 ~ 300℃Design and manufacture: GB12237-89, API 6D, JPI7S-48Flange dimensions: JB79-59, SH3406, GB9113, HG20592-97, ANSIB16.5, JIS B 2212-2214Structure Length: GB12221-89, ANSI B 16.10, JIS B2002Test and ins...

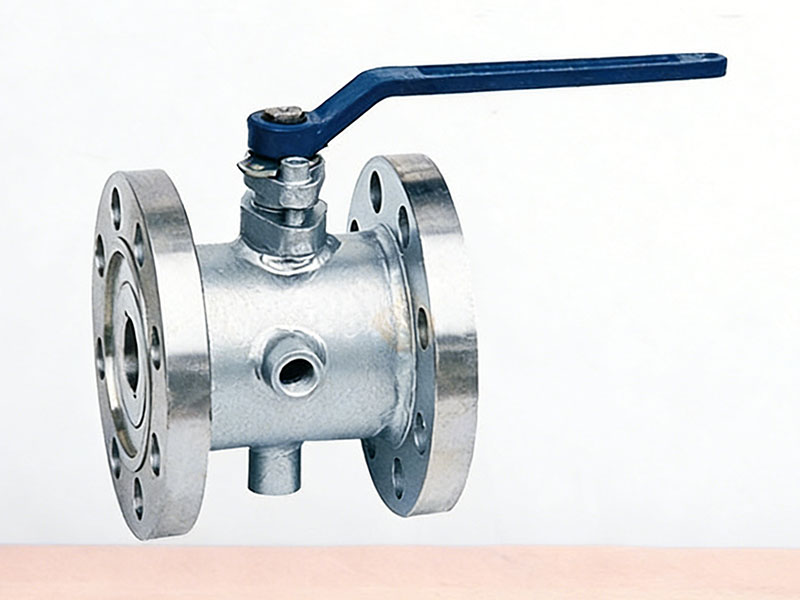

Insulation Ball Valve BQ41F

Insulation Ball Valve BQ41F

BQ41F Insulation Ball ValveProduct overviewModel No.: BQ41FNominal diameter: NPS1/2"~8"Nominal pressure: Class150~300LbMain material: 1Cr18Ni9Ti, SS304Applicable medium: heavy oil, glue and other easy to solidify mediumDrive mode: manual, electric, pneumaticDesign standard: ASMEB16.34GB/T12224Structure length...

Floating Flanoid Ball Valve Q41F

Floating Flanoid Ball Valve Q41F

Product:Floating Flanoid Ball ValveItem No.:Q41/341/941/F/H/YCalibre:DN8-100Nominal Pressure:1.6~10.0MPaDescription: The sphere of the ball valve is floating, under the pressure of the medium, the ball can produce a certain displacement and press on the sealing surface of the outlet end to ensure that the outlet end is...

Cryogenic Ball Valve DQ41F

Cryogenic Ball Valve DQ41F

Product:Cryogenic Ball ValveItem No.:DQ41F, DQ641Calibre:DN15-250Nominal Pressure:1.6~2.5MpaProduct OverviewCryogenic Ball Valves are mainly suitable for chemical plants such as ethylene and liquefied natural gas, and output liquid low-temperature media such as ethylene, liquid oxygen, liquid hydrogen, etc. This type o...
