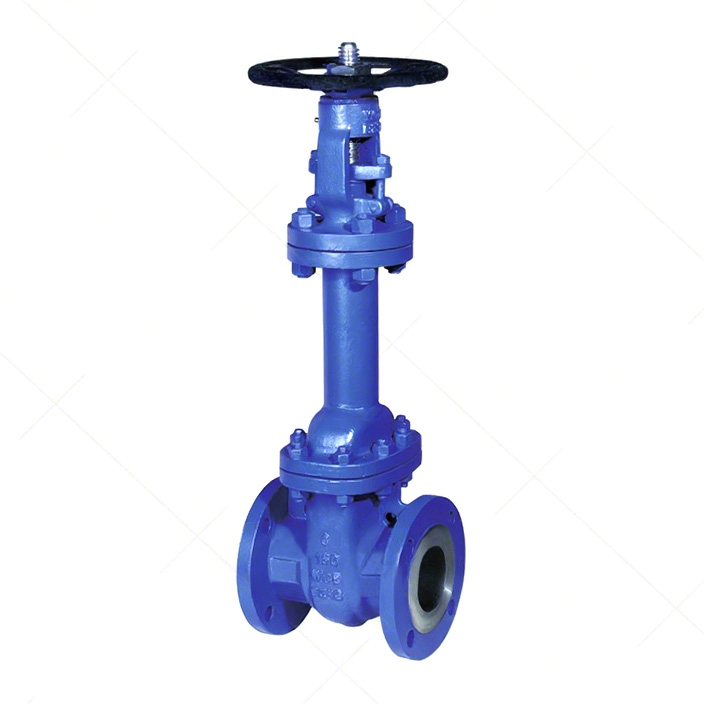

American Standard Bellows Gate Valve WZ41H / YProduct model: WZ41H / YDesign standard: ASME B16.34Structure length: ASME B16.5Connecting flange: ASME B16.5Test and inspection: API 598Valve body material: WCB / CF8 / CF8M / CF3 / cf3m / wc6 / wc9Nominal diameter: DN15-dn300Nominal pressure: 150LB-600LBConnection mode: f...
【For a better view of the product parameters, please browse our site by PC.】Fluorine Lined Gate Valve Z41F46Product overviewProduct model: Z41F46Nominal diameter: DN15~500mmPressure grade: 0.6, 1.0, 1.6MPaApplicable temperature: ≤100℃, ≤120℃, ≤150℃, (according to the lining material)Design and manufacture: G...
Product model: Z45Nominal diameter: DN50~700mmNominal pressure: PN1.0~1.6MPaApplicable temperature: ≤200℃Main material: gray cast iron, cast steelDrive mode: manual, electric, gear driveDesign and Manufacture: GB/T12234-89Structure length: GB/T12221-89Flange surface size: JB79 GB/T9112-9131Inspection and test: JB/...
Z41H GB Forged Steel Flange ValveProduct overviewProduct model: Z41HNominal diameter: DN15~50mmNominal pressure: Pn1.0 ~10.0MPaMain material: A105, LF2, F5, F11, F22, F304,F316, F304L,F316LDesign and manufacture: GB12234GB1221GB9131Structure length: JB/T74Connecting flange: GB9112 ~ 9131Pressure-temperature: HGJ67JB/T7...
Grooved Type Rising Elastic Seal Gate Valve QModel Number：Z81X-16QConnection：FlangeSealing testing pressure：24 barAvailable Size：DN50-DN300Body Material：Ductile QT450Working pressure：10/16 BarApplicable temperature：0-80°CInstallation：Vertically or horizontallyMaterial：Ductile IronProduct Description:1)Ductile iron...
Product：Low Temperature Gate ValveItem No.：DZ40YCalibre：DN20-300Nominal Pressure：1.6-10MPaDescription: The opening and closing part of the low temperature gate valve is the gate, the direction of movement of the gate is perpendicular to the direction of fluid, the gate valve can only be fully open and closed, can not b...
Product：Thermal insulation gate valveItem No.：BZ41H、BZ41W、BZ41YCalibre：DN50-400Nominal Pressure：PN16~PN40Description: Manual, flange connection, clear rod wedge rigid single gate, seat sealing surface material for alloy and stainless steel, nominal pressure PN16 to PN40, valve body material for carbon steel (BZ41H-16C-...
Product：Flangate ValveItem No.：Z41H/YCalibre：DN15～DN1000Nominal Pressure：1.6～42.0MPaDescription: Flangate valves are gate valves that are connected by flange, which is the most common form of connection. Flanct valves are stable and reliable when used in lines, so flanges are used on high-pressure lines. Flange-connect...
Product：Electric Knife Gate ValveItem No.：Z973F、Z973HCalibre：DN50~DN500Nominal Pressure：PN6~PN16Description: Z973F, Z973H electric knife-type gate valve (knife gate valve): electric drive, clip-on connection, open rod parallel rigid single gate, Z973F seat sealing surface material for fluorine plastic, Z973H seat...
