Welded Steel Ball Valve Q61F

咨询电话：0086 18905059981

Product Overview of Welded Steel Ball Valve Q61F:

Product Model: Q61F
Nominal diameter: DN15~250mm
Nominal Pressure: PN1.6~6.4Mpa, Class150~600LB
Main materials: WCB, A105, F11, F22, F304, F316, CF8, CF8M, WCC or according to customer requirements.
Applicable temperature: -40 ~220 ~
Connection: welding, butt welding
Drive mode: electric, manual, worm wheel drive, gear drive, etc.
Design and Manufacturing Standard: GB/T 12237-2007
Standard for Structural Length: GB/T 12221-2005
Socket welding standard: GB12224, ANSIB16.25
Pressure and temperature rating: GB/T 12224-2005
Test Inspection Standard: GB/T 13927-2008

Product Details of Welded Steel Ball Valve Q61F:

Application Scope of Welded Steel Ball Valve Q61F:
1) Urban gas: gas output pipeline, main line and supply pipeline of each branch line, etc.
2) Central heating: output pipelines, main lines and branches of large heating equipment.
3) Heat exchanger: opening and closing of pipelines and loops.
4) Steel plant: all kinds of fluid pipeline, exhaust gas discharge pipeline, gas and heat supply pipeline, fuel supply pipeline.
5) all kinds of industrial equipment: all kinds of heat treatment pipelines, all kinds of industrial gas and heat pipelines.

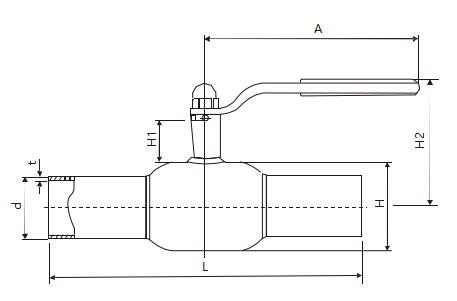

Main Connection Dimensions of Welded Steel Ball Valve Q61F:

DN	Bore	DH	d	t	L	H1	H2	A	kg
DN	Bore	DH	A/B	t	L	H1	H2	A	kg
50	40	89	60.3/57	4	300	35	135	180	4
65	50	108	76.1/76	4	300	35	144	275	5.2
80	65	133	88.9/89	5	300	44	154	275	6.3
100	80	159	114.6/108	5	325	50	193	365	11
125	100	193	139.7/133	5	325	42	218	365	16
150	125	219	168.3/159	6	350	83	343	650	24
200	150	273	219/219	7	400	84	345	800	39
